Warm Roof Thermal Insulated
PIR insulation boards are Totally CFC/HCFC free rigid polyisocyanurate insulation boards, with plain perforated glass tissue facings on both sides.
The highly efficient closed cell foam core has an exceptionally low thermal conductivity and achieves required U-values with a minimum thickness. E PIR MG provides an ideal substrates for Asphaltech standard warm roof system.
- Solar paint colours
- Neuchatel Mastic Asphalt
- Separation layer
- PIR Insulation boards
- Vapour barrier- metal lined vapour control layer
- Concrete deck
The Warm Roof System includes a layer of high quality insulation foam between the roof structure and the Neuchatel Mastic Asphalt layer. This will greatly increase the thermal properties of the roof structure. Very useful with today’s strict building code requirements.
Pacofoam is a high performance, fibre free, rigid thermoset insulation core faced on both sides with a low emissivity composite foil facing which is used for insulating flat roofs and is fully compatible with Neuchatel Mastic Asphalt systems.
- Monolithic, an aesthetic seamless finish
- Unbonded, allowing movement between structure and materials
- Can be laid at falls lower than 1.80
- A properly designed & installed mastic asphalt system will last 60 years
- Traditional mastic asphalt but with added polymers to improve flexibility & durability
- With 20 years warranty for supply and installation
- All in accordance with ISO 9001:2008
Mastic Asphalt Systems
Warm Roof Thermal Insulated System

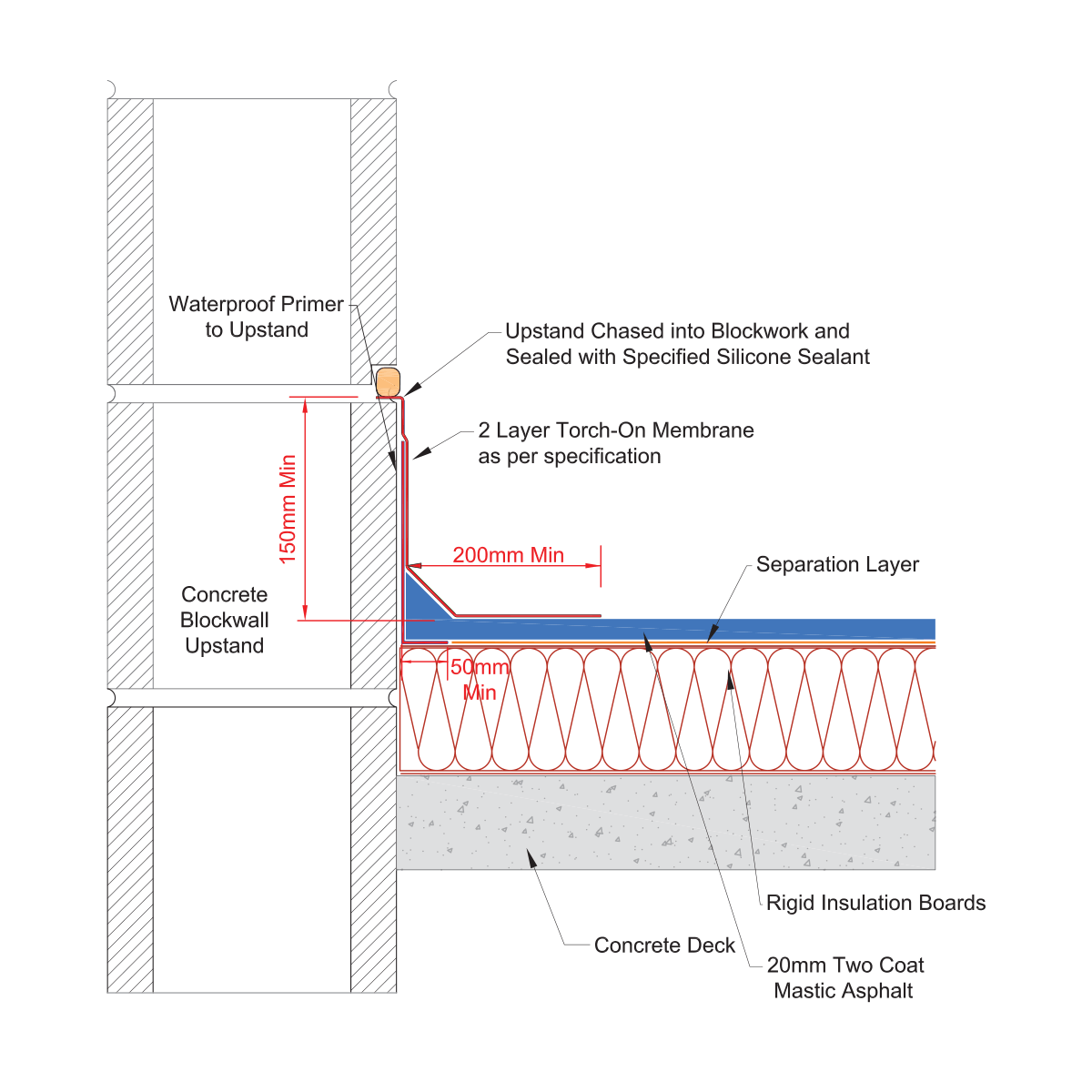

Asphaltech insulated car park – roof X-sectional detail
The Warm Roof System allows for the introduction of a layer of high-quality insulation foam to be placed between the roof structure and the Polymer Modified Mastic Asphalt layer. This will greatly increase the thermal properties of the roof structure. Especially useful with today’s strict building code requirements.
These products provide ideal substrates for Polymer Modified Mastic Asphalt in standard warm roof systems.
